Self-regulating heating cables Electrical freeze protection for both nonhazardous and hazardous locations
Product Overview

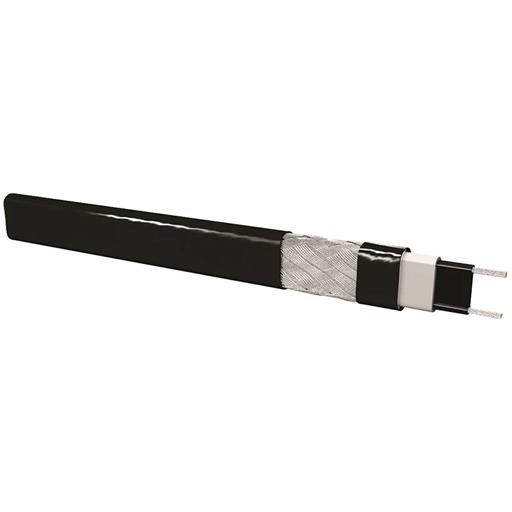

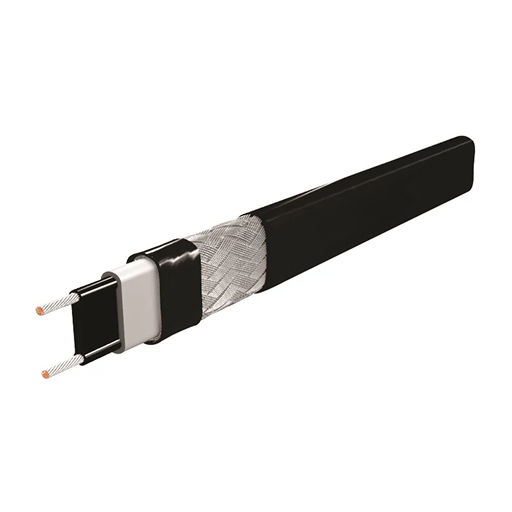

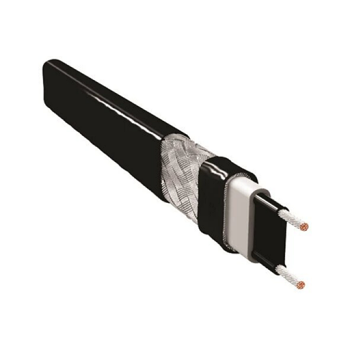

The Raychem BTV family of self-regulating heating cables provides the solution to freeze-protection and process-temperature maintenance applications.
BTV heating cables maintain process temperatures up to 150°F (65°C) and can withstand intermittent exposure to temperatures up to 185°F (85°C).
The heating cables are configured for use in nonhazardous and hazardous locations, including areas where corrosives may be present.
BTV cables meet the requirements of the U.S. National Electrical Code and the Canadian Electrical Code.
Features
- Simplified design in hazardous area: unconditional T6 class
- Fast installation: cut-to-length, multiple overlaps allowed, meter markings, user-friendly connections kits
- Safe and efficient in operation: no overheating, uniform pipe temperatures, energy saving technology
- Reliable during long life: 10 year product warranty available, maintenance free
Specifications
- Area Classification: Non-Hazardous; Hazardous
- Ground Path Type: Braid
- Max Intermittent Exposure Temperature, Power On/Off: 185 °F
- Max Maintain or Continuous Exposure Temperature, Power On/Off: 150 °F
| Catalog Number | Item Name | Nominal Power Output @ 50°F | Supply Voltage |
| 469145-000 | 3BTV2-CT | 3 W/ft | 200 – 277 V |
| 487509-000 | 5BTV2-CT | 5 W/ft | 200 – 277 V |
| 008633-000 | 8BTV2-CT | 8 W/ft | 200 – 277 V |
| 567513-000 | 10BTV2-CT | 10 W/ft | 200 – 277 V |
| 893301-000 | 3BTV1-CT | 3 W/ft | 100 – 130 V |
| 313747-000 | 5BTV1-CT | 5 W/ft | 100 – 130 V |
| 481491-000 | 8BTV1-CT | 8 W/ft | 100 – 130 V |
| 516277-000 | 10BTV1-CT | 10 W/ft | 100 – 130 V |
| 914279-000 | 3BTV2-CR | 3 W/ft | 200 – 277 V |
| 414809-000 | 5BTV2-CR | 5 W/ft | 200 – 277 V |
| 479821-000 | 8BTV2-CR | 8 W/ft | 200 – 277 V |
| 677245-000 | 10BTV2-CR | 10 W/ft | 200 – 277 V |
| 013331-000 | 3BTV1-CR | 3 W/ft | 100 – 130 V |
| 208489-000 | 5BTV1-CR | 5 W/ft | 100 – 130 V |
| 413851-000 | 8BTV1-CR | 8 W/ft | 100 – 130 V |
| 002349-000 | 10BTV1-CR | 10 W/ft | 100 – 130 V |
Download
| Datasheet | RAYCHEM-DS-H51086-BTV-EN |
| Installation Manual | RAYCHEM-IM-H57274-SelfRegPowerLimHeatTrac-EN |
| Design Guide | Raychem-DG-H56882-SelfRegulating-EN |
