Electrical freeze protection and process-temperature maintenance for both nonhazardous and hazardous locations. Heating Trace using for freeze protection for metalic and non-metalic tube with self-regulating heating cable.
Tube Tracer with power limiting heating cable is suitable for maintaining high temperature and withstands temperature exposure of 250℃, and lower risk of overheating the specification tube or product than with constant watt design Self-regulating heating cables provides solutions for industrial freeze protection and process temperature
maintenance applications requiring high power output.
The heating cables can withstand temperatures up to 250°C and provide process temperature maintenance to 121°C.
Maximum maintain or continuous exposure temperature (power on) : 121℃
Maximum intermittent exposure temperature, 1000 hours : 250℃ (power on or off)
Minimum installation temperature : –40°C

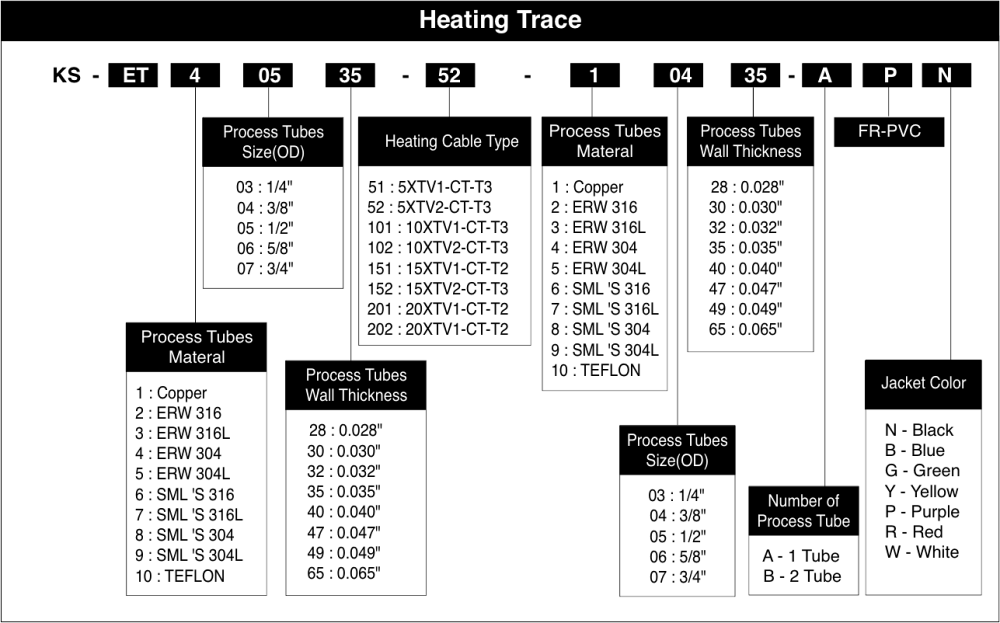

1. Process Tube
Stainless Steel (304, 304L, 316, 316L), Copper, Teflon, etc.
Size : 1/4”, 3/8″, 1/2″, 5/8″, 3/4”
2. Heating Cable
Self-regulating heating cable
3. Insulation
Materials : Non-Flammable E-Glass Fiber, Aerogel
Thickness : 8mmT (4mm x 2Layer)
- Double Insulation & Double Heat Reflective Tape
4. Heat Reflective Tape
Material : Aluminum
5. Out Jacket
FR-PVC (Flame Retardant Polyvinyl Chloride)
UL 105℃ / Flame / UV / Oil & Sunlight resistance
Max. Operating Temperature : 204℃ (Over 204℃ -By Quotation)
Max. Outer PVC Jacket Temperaure : 60℃ ~ 65℃
Min. Installation Temperature : -40℃
Max. Recommended Pressure : 250psi
Engineering Inquiry: Heating Cable Design & Selection
Please provide me with the following information:
- Country Name?
- Plant Name?
- Ambient Minimum Temperature?
- Process Liquid?
- Process Temperature?
- Maintain Temperature?
- Design Temperature?
- Insulation Material?
- Insulation Thickness?
- Voltage?
